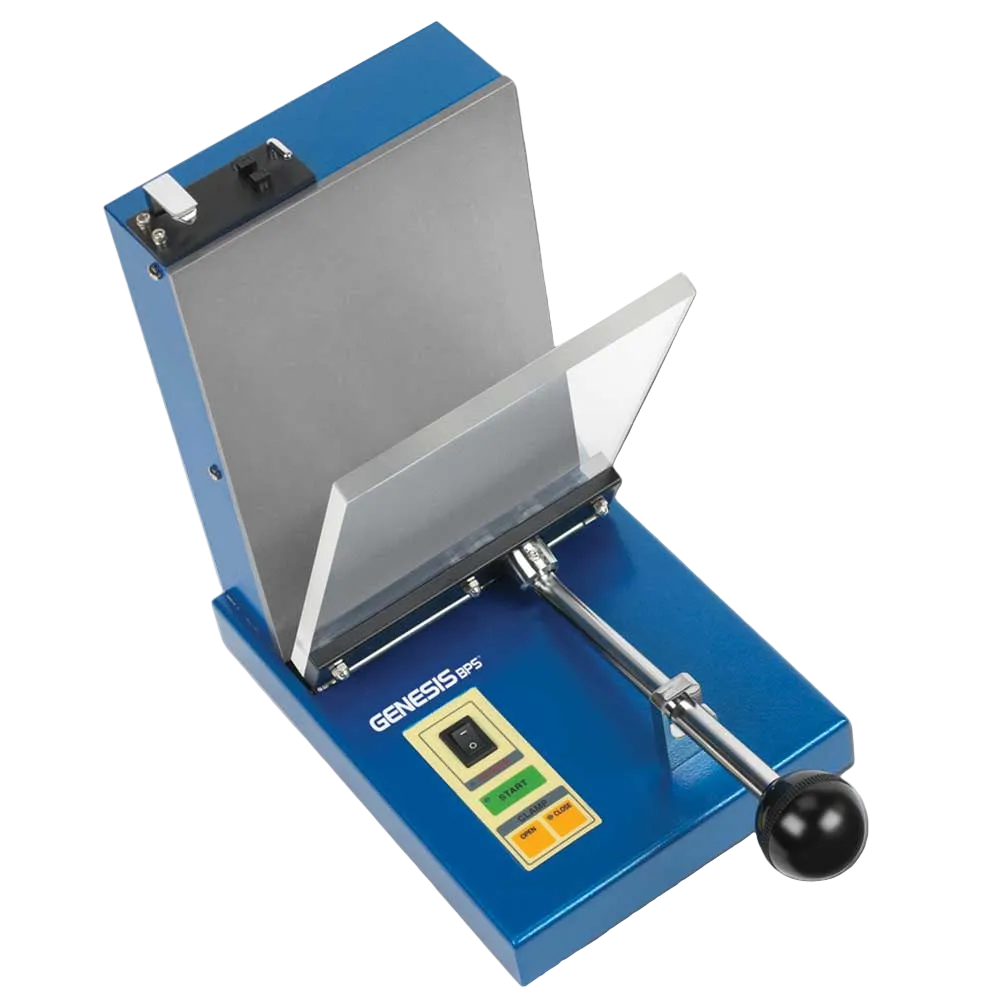

Electronic Optical Plasma Expressor
Express plasma with precision and control.
The GENESIS™ Electronic Optical Plasma Expressor is an advanced plasma expressor device designed to deliver precise, consistent separation of plasma. Utilizing electronic control and optical sensing technology, the system automatically detects plasma to support accurate results while minimizing red cell carryover. Its intuitive operation reduces operator variability and improves workflow efficiency in blood bank and laboratory environments. Built for reliability and ease of cleaning, the GENESIS™ Electronic Optical Plasma Expressor is ideal for facilities requiring accuracy, repeatability, and compliance in plasma processing operations.
The ES315C automatically separates plasma and red cells from whole blood.
Product Overview
• Adjustable optical sensor detects red cells
• Electronic clamp activates when optical sensor detects red cells
• Enables operator to multi-task during plasma separation process
• Provides uniform production output
• 1 year limited warranty
Special Features
• Large plate supports bags up to 600 ml
• Audible alarm
• Indicator lamps
• Operate 5 electronic expressors on one A/C power adaptor
| Dimensions | 6.5"L x 9.1"W x 9.4"H 165mm L x 230mm W x 240mm H |
| Sensor Type | Infrared interruption sensor |
| Clamping Power Source | Geared motor |
| Clamp Speed | ~ 1 Second detecting red cells |
| Control | Power, open, close, start, sensitivity |
| Power Source | A/C power adaptor A/C 100-120V or 220-240V A/C in, 18V out |
| Power Consumption | 10 Watt max |
| Weight: Electronic Expressor Total Shipping | 7 LB 12 LB |
| Included | Power adaptor, jump cable(tandem connection), user manual |
