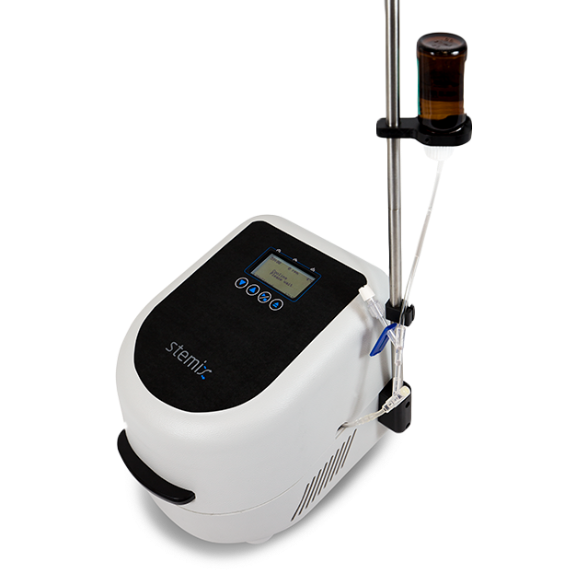

Stemix - Cord Blood Mixer and Cooler
Setting a new processing standard for stem cells
Stemix is an innovative device for controlled temperature mixing of cryoprotectant. Stemix is compatible with standard 25ml cryobags and allows the operator to program the temperature, duration and speed of mixing. Take control of your process with the easy to operate, easy to clean and compact Stemix.
Stemix provides a professional solution specifically designed for the temperature controlled mixing of cryoprotectant in any standard 25ml cryobag. Stemix is an innovative and cost effective device that can help facilitate the addition of cryoprotectant to cryopreserved stem cell products. Stemix offers an integrated traceability software that allows an operator to keep records of the temperature profile during the mixing process. The software keeps a log of the user, the process and any events that might occur during the mixing. Operators can easily generate a PDF file of the process.
Product Overview
• Compact design
• Easy to operate
• Easy to clean
• Compatible with standard cryobags
| Dimension (Inches) | 9.1 W x 11.4 D x 6.3 H |
| Dimension (Centimeters) | 23 W x 29 D x 21 H |
| Weight | 12.1 lbs / 5.5 Kg |
| Temperature resolution | ± 0.1 °C |
| Temperature range | 4 - 50 °C |
| Average cooling speed from 50°C to 4°C | < 2.5 °C/min |
| Time to reach 4°C from 25°C | < 13 min* |
| Mixing speed | 0 - 50 (± 1) rpm |
| Mixing timer | 0 - 60 min |
| Mixing pads height range | 0 - 5 mm |
| Cryobag compatibility | Pall 25 ml, CryoSC-S, CryoSC-D |
| Interface & Network | LAN & USB |
| Logging | Internal SD memory card |
| Multi-language interface | English, Spanish, French and Portuguese |
| Error messages | Low/High cooling rate Temperature difference on the bag housing Device overheating Mixing faults Lid open during cycle Power off during cycle Temperature sensors faults |
| External power supply | 12V, 5A (included) |
| Outlet/Inlet filters | Yes |
| Firmware update | Yes |
